1. Attention 방식이란?
seq to seq의 성능을 높이기 위해 도입된 방법 중 하나인 seq to seq Attention에 대해 알아보는 시간을 가지도록 하겠다.

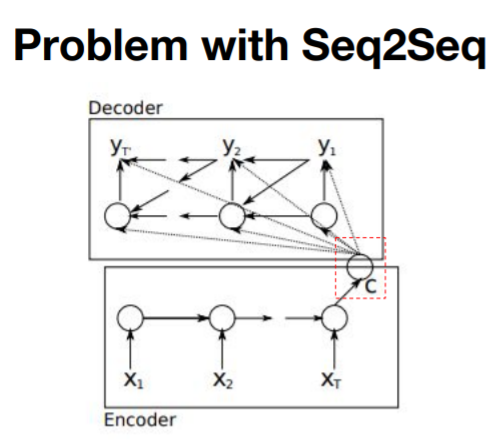

기존의 seq to seq는 다음과 같은 문제점을 가지고 있다.
①중간에 한 개의 벡터 값(C)을 활용하는 방식으로는 모든 정보를 담기 어렵다.
②입력 언어와 타켓 언어가 길면 길어질수록 모델의 성능이 떨어지는 현상이 발생한다.

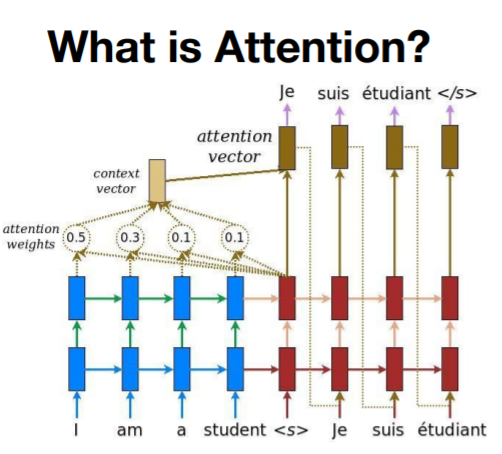

위와 같은 문제를 해결하기 위해 등장한 것이 바로 Attention이다. 이는 우리가 영어 지문을 해석할 때 모든 정보를 기억하기 보다 중요한 문장이나 단어에 집중하듯, 모델이 예측을 할 때 중요한 정보만 기억하면서 학습하는 구조이다. 기존에 배운 seq to seq에서 어텐션을 적용한 그림을 한 번 살펴보자.
이전에 배운 seq to seq는 모델에서는 인코더의 마지막 hidden 값을 활용하여 컨텍스트 벡터를 생성하고 그 컨텍스트 벡터를 기반으로 디코더 부분을 학습하였다. 하지만 Attention 구조에서는 매 인코더의 step을 모두 활용하여 컨텍스트 벡터에 적용을 하며, 이 때 attention weights라는 개념을 활용하여 현재 step에서 가장 중요하게 영향을 미친 인코더에 가중치를 준다. 따라서 디코더가 어느 입력 부분에 집중해야 되는지 알려주는 형식이 된다. 참고로 attention weights도 마지막에 softmax함수가 적용되기 때문에 총합은 1이 된다. 이제 구현을 하면서 어떻게 동작하는지 더욱 자세히 알아보자.
2. Attention구조로 구현하기
1) Importing libraries
from __future__ import absolute_import, division, print_function
import tensorflow as tf
### matplotlib 한글 폰트 설정 #############################
from matplotlib import font_manager, rc
## for window #####
font_name = font_manager.FontProperties(fname="c:/Windows/Fonts/malgun.ttf").get_name()
rc('font', family=font_name)
## for mac #####
#rc('font', family='AppleGothic') #for mac
import matplotlib.pyplot as plt
from sklearn.model_selection import train_test_split
from tensorflow import keras
from tensorflow.keras.preprocessing.sequence import pad_sequences
from pprint import pprint
import numpy as np
import os
print(tf.__version__)
2) Data Pipeline : Dataset
sources = [['I', 'feel', 'hungry'],
['tensorflow', 'is', 'very', 'difficult'],
['tensorflow', 'is', 'a', 'framework', 'for', 'deep', 'learning'],
['tensorflow', 'is', 'very', 'fast', 'changing']]
targets = [['나는', '배가', '고프다'],
['텐서플로우는', '매우', '어렵다'],
['텐서플로우는', '딥러닝을', '위한', '프레임워크이다'],
['텐서플로우는', '매우', '빠르게', '변화한다']]# vocabulary for sources
s_vocab = list(set(sum(sources, [])))
s_vocab.sort()
s_vocab = ['<pad>'] + s_vocab
source2idx = {word : idx for idx, word in enumerate(s_vocab)}
idx2source = {idx : word for idx, word in enumerate(s_vocab)}
pprint(source2idx){'<pad>': 0, 'I': 1, 'a': 2, 'changing': 3, 'deep': 4, 'difficult': 5, 'fast': 6, 'feel': 7, 'for': 8, 'framework': 9, 'hungry': 10, 'is': 11, 'learning': 12, 'tensorflow': 13, 'very': 14}
# vocabulary for targets
t_vocab = list(set(sum(targets, [])))
t_vocab.sort()
t_vocab = ['<pad>', '<bos>', '<eos>'] + t_vocab
target2idx = {word : idx for idx, word in enumerate(t_vocab)}
idx2target = {idx : word for idx, word in enumerate(t_vocab)}
pprint(target2idx){'<bos>': 1, '<eos>': 2, '<pad>': 0, '고프다': 3, '나는': 4, '딥러닝을': 5, '매우': 6, '배가': 7, '변화한다': 8, '빠르게': 9, '어렵다': 10, '위한': 11, '텐서플로우는': 12, '프레임워크이다': 13}
def preprocess(sequences, max_len, dic, mode = 'source'):
assert mode in ['source', 'target'], 'source와 target 중에 선택해주세요.'
if mode == 'source':
# preprocessing for source (encoder)
s_input = list(map(lambda sentence : [dic.get(token) for token in sentence], sequences))
s_len = list(map(lambda sentence : len(sentence), s_input))
s_input = pad_sequences(sequences = s_input, maxlen = max_len, padding = 'post', truncating = 'post')
return s_len, s_input
elif mode == 'target':
# preprocessing for target (decoder)
# input
t_input = list(map(lambda sentence : ['<bos>'] + sentence + ['<eos>'], sequences))
t_input = list(map(lambda sentence : [dic.get(token) for token in sentence], t_input))
t_len = list(map(lambda sentence : len(sentence), t_input))
t_input = pad_sequences(sequences = t_input, maxlen = max_len, padding = 'post', truncating = 'post')
# output
t_output = list(map(lambda sentence : sentence + ['<eos>'], sequences))
t_output = list(map(lambda sentence : [dic.get(token) for token in sentence], t_output))
t_output = pad_sequences(sequences = t_output, maxlen = max_len, padding = 'post', truncating = 'post')
return t_len, t_input, t_output# preprocessing for source
s_max_len = 10
s_len, s_input = preprocess(sequences = sources,
max_len = s_max_len, dic = source2idx, mode = 'source')
print(s_len, s_input)[3, 4, 7, 5]
[[ 1 7 10 0 0 0 0 0 0 0] [13 11 14 5 0 0 0 0 0 0] [13 11 2 9 8 4 12 0 0 0] [13 11 14 6 3 0 0 0 0 0]]
# preprocessing for target
t_max_len = 12
t_len, t_input, t_output = preprocess(sequences = targets,
max_len = t_max_len, dic = target2idx, mode = 'target')
print(t_len, t_input, t_output)[5, 5, 6, 6]
[[ 1 4 7 3 2 0 0 0 0 0 0 0] [ 1 12 6 10 2 0 0 0 0 0 0 0] [ 1 12 5 11 13 2 0 0 0 0 0 0] [ 1 12 6 9 8 2 0 0 0 0 0 0]] [[ 4 7 3 2 0 0 0 0 0 0 0 0] [12 6 10 2 0 0 0 0 0 0 0 0] [12 5 11 13 2 0 0 0 0 0 0 0] [12 6 9 8 2 0 0 0 0 0 0 0]]
3) hyper-parameters
# hyper-parameters
epochs = 100
batch_size = 4
learning_rate = .005
total_step = epochs / batch_size
buffer_size = 100
n_batch = buffer_size//batch_size
embedding_dim = 32
units = 128
# input
data = tf.data.Dataset.from_tensor_slices((s_len, s_input, t_len, t_input, t_output))
data = data.shuffle(buffer_size = buffer_size)
data = data.batch(batch_size = batch_size)
# s_mb_len, s_mb_input, t_mb_len, t_mb_input, t_mb_output = iterator.get_next()def gru(units):
return tf.keras.layers.GRU(units,
return_sequences=True,
return_state=True,
recurrent_activation='sigmoid',
recurrent_initializer='glorot_uniform')
4) Encoder
구조는 기존의 seq to seq와 동일하니 이전의 포스팅을 참조
class Encoder(tf.keras.Model):
def __init__(self, vocab_size, embedding_dim, enc_units, batch_sz):
super(Encoder, self).__init__()
self.batch_sz = batch_sz
self.enc_units = enc_units
self.embedding = tf.keras.layers.Embedding(vocab_size, embedding_dim)
self.gru = gru(self.enc_units)
def call(self, x, hidden):
x = self.embedding(x)
output, state = self.gru(x, initial_state = hidden)
# print("state: {}".format(state.shape))
# print("output: {}".format(state.shape))
return output, state
def initialize_hidden_state(self):
return tf.zeros((self.batch_sz, self.enc_units))
5) Decoder

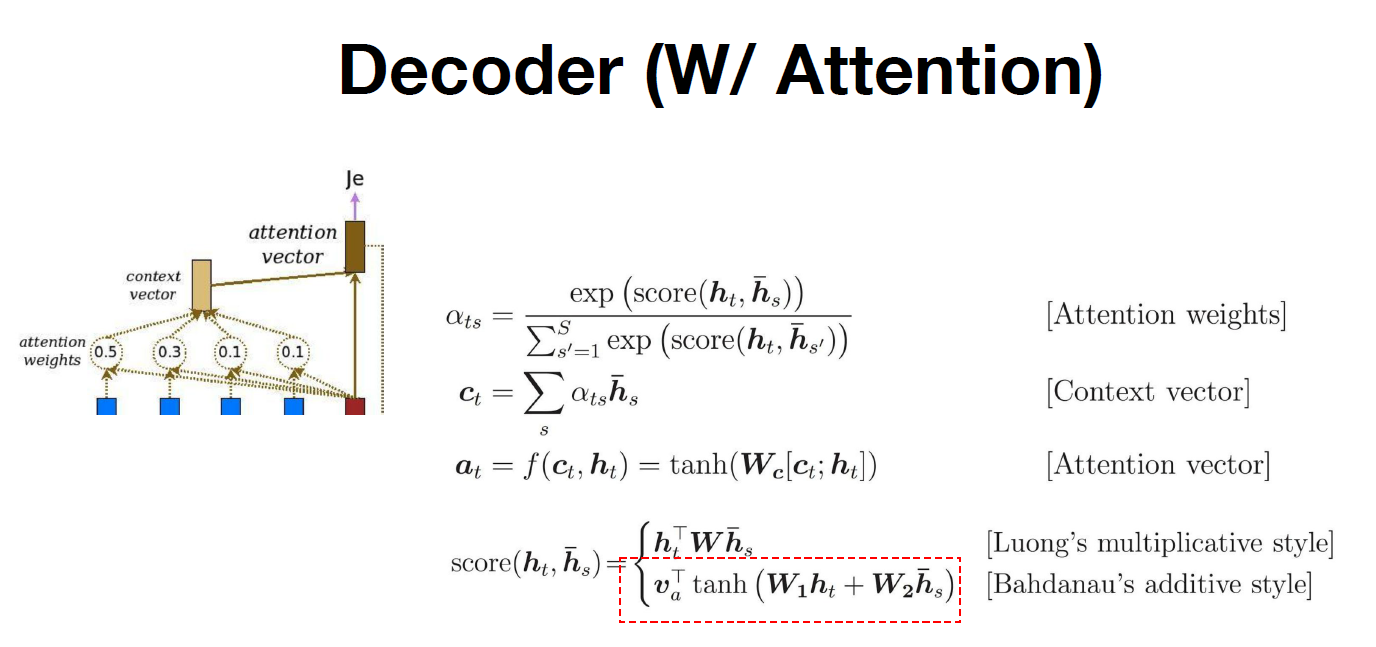

Attention은 디코더 쪽에 구현되어 있다. Attention 구현을 위해 관련 기본 수식들에 대해서 알아보자.
우선 현재 step에서 어떤 인코더가 중요하게 반영이 되는지를 구하기 위해서 score을 구해야한다. score을 계산하는 방법은 여러가지가 있는데, 여기서는 Bahdanau의 어텐션 스타일의 방법을 사용해볼 것이다. 그 다음 attention weight는 이전에 설명했듯 score값을 기반으로 softmax를 적용한다. Context의 벡터는 각 hidden 값에 기존에 구했던 weight값을 곱하여 구한다. 마지막으로 현재 step에 있는 디코더의 출력값과 그리고 Context vector를 concat하여 Attention Vector을 생성한 후 반영해준다. 이러한 수식들을 tensorflow에서 어떻게 구현하는지 아래의 코드에서 살펴보자.
class Decoder(tf.keras.Model):
def __init__(self, vocab_size, embedding_dim, dec_units, batch_sz):
super(Decoder, self).__init__()
self.batch_sz = batch_sz
self.dec_units = dec_units
self.embedding = tf.keras.layers.Embedding(vocab_size, embedding_dim)
self.gru = gru(self.dec_units)
self.fc = tf.keras.layers.Dense(vocab_size)
# used for attention
# Attention을 위해서 마지막에 Dense벡터와 같은 w1, w2, V값을 구해준다.(수식에 활용하기 위해 미리 선언)
self.W1 = tf.keras.layers.Dense(self.dec_units)
self.W2 = tf.keras.layers.Dense(self.dec_units)
self.V = tf.keras.layers.Dense(1)
def call(self, x, hidden, enc_output):
# enc_output shape == (batch_size, max_length, hidden_size)
# hidden shape == (batch_size, hidden size)
# hidden_with_time_axis shape == (batch_size, 1, hidden size)
# we are doing this to perform addition to calculate the score
hidden_with_time_axis = tf.expand_dims(hidden, 1)
# * `score = FC(tanh(FC(EO) + FC(H)))`
# score shape == (batch_size, max_length, 1)
# we get 1 at the last axis because we are applying tanh(FC(EO) + FC(H)) to self.V
# 앞서 살펴보았듯, Score를 구할 때 Bahdanau 스타일을 구현할 것이다.
# 그러기 위해서는 앞서 구한 w1, w2, V를 모두 활용할 것이다.
score = self.V(tf.nn.tanh(self.W1(enc_output) + self.W2(hidden_with_time_axis)))
#* `attention weights = softmax(score, axis = 1)`. Softmax by default is applied on the last axis but here we want to apply it on the *1st axis*, since the shape of score is *(batch_size, max_length, 1)*. `Max_length` is the length of our input. Since we are trying to assign a weight to each input, softmax should be applied on that axis.
# attention_weights shape == (batch_size, max_length, 1)
# 앞에서 설명했듯, attention_weights는 softmax함수를 이용하여 구한다.
attention_weights = tf.nn.softmax(score, axis=1)
# context_vector shape after sum == (batch_size, hidden_size)
# * `context vector = sum(attention weights * EO, axis = 1)`. Same reason as above for choosing axis as 1.
# 마지막으로 현재 인코더 출력값과 attention weights의 가중치를 곱하여 Context Vector값을 구해준다.
context_vector = attention_weights * enc_output
context_vector = tf.reduce_sum(context_vector, axis=1)
# x shape after passing through embedding == (batch_size, 1, embedding_dim)
# * `embedding output` = The input to the decoder X is passed through an embedding layer.
x = self.embedding(x)
# x shape after concatenation == (batch_size, 1, embedding_dim + hidden_size)
# * `merged vector = concat(embedding output, context vector)`
x = tf.concat([tf.expand_dims(context_vector, 1), x], axis=-1)
# passing the concatenated vector to the GRU
output, state = self.gru(x)
# output shape == (batch_size * 1, hidden_size)
output = tf.reshape(output, (-1, output.shape[2]))
# output shape == (batch_size * 1, vocab)
x = self.fc(output)
return x, state, attention_weights
def initialize_hidden_state(self):
return tf.zeros((self.batch_sz, self.dec_units))encoder = Encoder(len(source2idx), embedding_dim, units, batch_size)
decoder = Decoder(len(target2idx), embedding_dim, units, batch_size)
def loss_function(real, pred):
mask = 1 - np.equal(real, 0)
loss_ = tf.nn.sparse_softmax_cross_entropy_with_logits(labels=real, logits=pred) * mask
# print("real: {}".format(real))
# print("pred: {}".format(pred))
# print("mask: {}".format(mask))
# print("loss: {}".format(tf.reduce_mean(loss_)))
return tf.reduce_mean(loss_)
# creating optimizer
optimizer = tf.keras.optimizers.Adam()
# creating check point (Object-based saving)
checkpoint_dir = './data_out/training_checkpoints'
checkpoint_prefix = os.path.join(checkpoint_dir, 'ckpt')
checkpoint = tf.train.Checkpoint(optimizer=optimizer,
encoder=encoder,
decoder=decoder)
# create writer for tensorboard
summary_writer = tf.summary.create_file_writer(logdir=checkpoint_dir)
6) Training
for epoch in range(epochs):
hidden = encoder.initialize_hidden_state()
total_loss = 0
for i, (s_len, s_input, t_len, t_input, t_output) in enumerate(data):
loss = 0
with tf.GradientTape() as tape:
enc_output, enc_hidden = encoder(s_input, hidden)
dec_hidden = enc_hidden
dec_input = tf.expand_dims([target2idx['<bos>']] * batch_size, 1)
#Teacher Forcing: feeding the target as the next input
for t in range(1, t_input.shape[1]):
predictions, dec_hidden, _ = decoder(dec_input, dec_hidden, enc_output)
loss += loss_function(t_input[:, t], predictions)
dec_input = tf.expand_dims(t_input[:, t], 1) #using teacher forcing
batch_loss = (loss / int(t_input.shape[1]))
total_loss += batch_loss
variables = encoder.variables + decoder.variables
gradient = tape.gradient(loss, variables)
optimizer.apply_gradients(zip(gradient, variables))
if epoch % 10 == 0:
#save model every 10 epoch
print('Epoch {} Loss {:.4f} Batch Loss {:.4f}'.format(epoch,
total_loss / n_batch,
batch_loss.numpy()))
checkpoint.save(file_prefix = checkpoint_prefix)Epoch 0 Loss 0.0396 Batch Loss 0.9891
Epoch 10 Loss 0.0378 Batch Loss 0.9462
Epoch 20 Loss 0.0345 Batch Loss 0.8626
Epoch 30 Loss 0.0324 Batch Loss 0.8108
Epoch 40 Loss 0.0288 Batch Loss 0.7188
Epoch 50 Loss 0.0210 Batch Loss 0.5242
Epoch 60 Loss 0.0158 Batch Loss 0.3945
Epoch 70 Loss 0.0110 Batch Loss 0.2743
Epoch 80 Loss 0.0070 Batch Loss 0.1742
Epoch 90 Loss 0.0040 Batch Loss 0.0999
def evaluate(sentence, encoder, decoder, inp_lang, targ_lang, max_length_inp, max_length_targ):
attention_plot = np.zeros((max_length_targ, max_length_inp))
# sentence = preprocess_sentence(sentence)
inputs = [inp_lang[i] for i in sentence.split(' ')]
inputs = tf.keras.preprocessing.sequence.pad_sequences([inputs], maxlen=max_length_inp, padding='post')
inputs = tf.convert_to_tensor(inputs)
result = ''
hidden = [tf.zeros((1, units))]
enc_out, enc_hidden = encoder(inputs, hidden)
dec_hidden = enc_hidden
dec_input = tf.expand_dims([targ_lang['<bos>']], 0)
for t in range(max_length_targ):
predictions, dec_hidden, attention_weights = decoder(dec_input, dec_hidden, enc_out)
# storing the attention weigths to plot later on
attention_weights = tf.reshape(attention_weights, (-1, ))
attention_plot[t] = attention_weights.numpy()
predicted_id = tf.argmax(predictions[0]).numpy()
result += idx2target[predicted_id] + ' '
if idx2target.get(predicted_id) == '<eos>':
return result, sentence, attention_plot
# the predicted ID is fed back into the model
dec_input = tf.expand_dims([predicted_id], 0)
return result, sentence, attention_plot
# result, sentence, attention_plot = evaluate(sentence, encoder, decoder, source2idx, target2idx,
# s_max_len, t_max_len)# function for plotting the attention weights

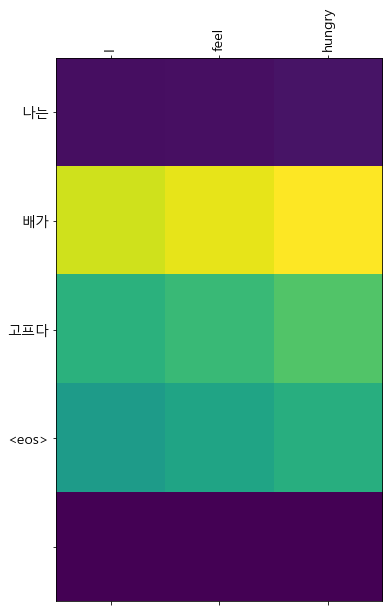

def plot_attention(attention, sentence, predicted_sentence):
fig = plt.figure(figsize=(10,10))
ax = fig.add_subplot(1, 1, 1)
ax.matshow(attention, cmap='viridis')
fontdict = {'fontsize': 14}
ax.set_xticklabels([''] + sentence, fontdict=fontdict, rotation=90)
ax.set_yticklabels([''] + predicted_sentence, fontdict=fontdict)
plt.show()def translate(sentence, encoder, decoder, inp_lang, targ_lang, max_length_inp, max_length_targ):
result, sentence, attention_plot = evaluate(sentence, encoder, decoder, inp_lang, targ_lang, max_length_inp, max_length_targ)
print('Input: {}'.format(sentence))
print('Predicted translation: {}'.format(result))
attention_plot = attention_plot[:len(result.split(' ')), :len(sentence.split(' '))]
plot_attention(attention_plot, sentence.split(' '), result.split(' '))#restore checkpoint
checkpoint.restore(tf.train.latest_checkpoint(checkpoint_dir))<tensorflow.python.training.tracking.util.CheckpointLoadStatus at 0x189d5c4ac88>
sentence = 'I feel hungry'
# sentence = 'tensorflow is a framework for deep learning'
translate(sentence, encoder, decoder, source2idx, target2idx, s_max_len, t_max_len)Input: I feel hungry
Predicted translation: 나는 배가 고프다 <eos>
참고자료
https://www.edwith.org/boostcourse-dl-tensorflow/lecture/43756/
728x90
